Rating:50mA 24VDC
Contact Resistance:50mΩ Max.(initial)
Insulation Resistance:100mΩMin
Operating Force:r 170±50gf
Total Travel:2.0±0.4mm
Operatong Life:50,000 Cycles Min
Solder specifications:260ofor5 seconds
Operating Temerature:-20℃~+70℃
介紹：

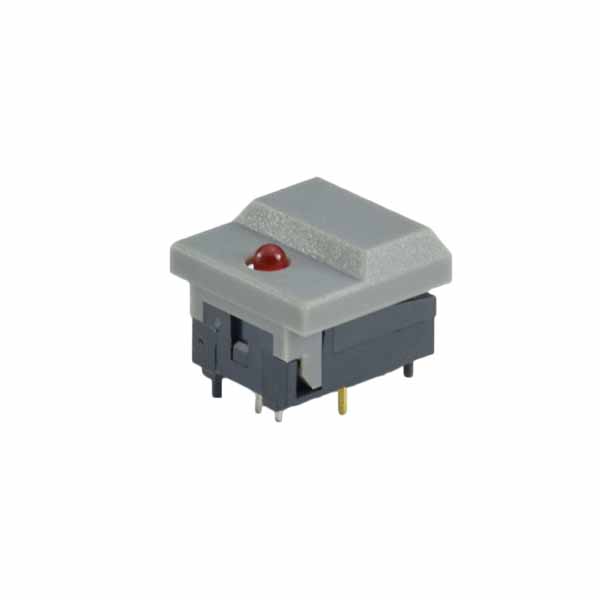

控台按鍵PB86係列，蓋帽尺寸有小蓋12*17mm和（hé）17*17mm兩種，適用於舞台燈光設備，如老虎控（kòng）台，珍（zhēn）珠控台（tái），512控台等，手感極佳，高壽命，任意定製絲印。
