Rating:0.2A 36VDC
Contact Resistance:100mΩ Max.(initial)
Insulation Resistance:100mΩMin
Operating Force:r 200±100gf
Total Travel:1.8±0.3mm
Operatong Life:30,000 Cycles Min
Solder specifications:350ofor3 seconds
Operating Temerature:-20℃~+85℃
介紹：

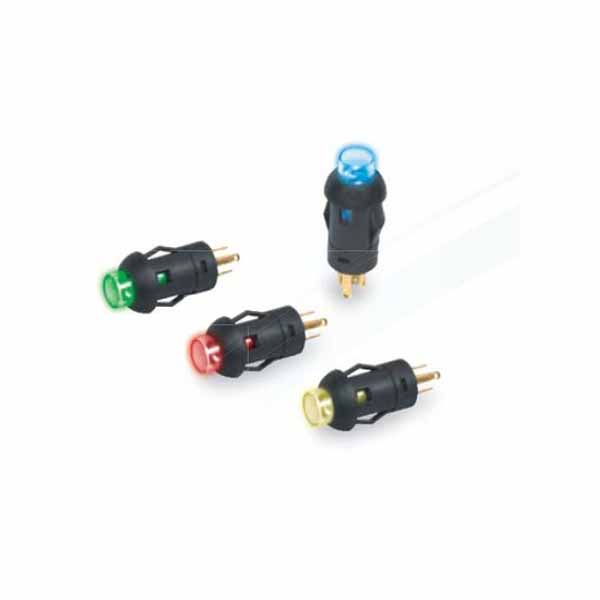

帶（dài）燈（dēng）按鍵開關8mm，迷你卡式安裝（zhuāng）簡便，具有單色和雙（shuāng）色燈，帶燈體積小安裝便捷是眾多工程設計首選。
